Machinery

We have a comprehensive machining facility

which provides a broad manufacturing capability and utilises the following equipment:

Portable 5-Axis CNC Milling machine

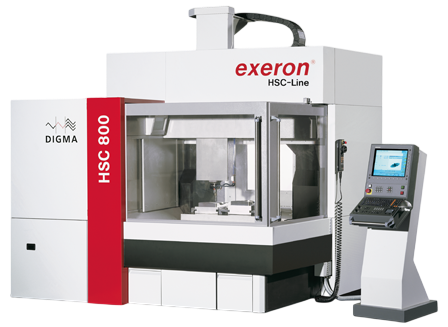

EXERON digma hsc 800 for pcs. up to: 800 x 800 x 500

KITAMURA MYCENTER H300 for pcs. up to: 400 x 425 x 400

Horizontal Machining Centre



Portable 3-Axis CNC Milling machine

 MAS MMC 1500 Power for pcs. up to the dimensions of: 1500x1300x600 mm

3-Axis CNC Milling machine

MAS MCV 1270 Speed  for pcs. up to: 1270x650x720 mm

mas

 ZPS MCFV 100-S for pcs. up to: 1000x600x560 mm

Deckel Maho DMC 835V  for pcs. up to: 835x510x510 mm

4-Axis CNC Milling machine

Deckel Maho 103V for pcs. up to: 1000x600x560 mm

Mitsubishi Wire EDM machinery:

FA20S for pcs. up to: 500x350x300 mm

 FA20 for pcs. up to: 500x350x300 mm

        BA8 for pcs. up to: 320x250x220 mm

CX20 for pcs. up to: 500x350x300 mm

fa20-machine-clipped

EDM machines:

Agie Mondo Star 20 for pcs. up to: 400x300



Conventional machinery:

Lathe TUG-40 for pcs. up to the diameter of 400 x 2000 mm

Heavy- duty lathe for pcs. up to the diameter of 900 x 2000 mm

 SMK 25 Milling machine for pcs. up to: 500 x 300 x 300 mm

 Milling machine for pcs. up to: 1000 x 560 x 800 mm



Vibroabrasive machining:

Loading tub diameter:  1690 mm

Loading tub depth: 660 mm

Maximum load of parts : 400 kg

Multi-tasking machine CNC

Nakamura Tome WT-150 for pcs. up to the diameter of: fi 52x500 - 8 osiowe



CNC Lathe

Traub TND 360TX8 for pcs. up to the diameter of: fi 360x800 - 2-Axis

PRATT & WHITNEY for pcs. up to the diameter of: fi 900x2000 mm - 2-Axis

Okuma LC50 for pcs. up to the diameter of: 850 x 1200 mm - 4-Axis

CNC grinding machine:

HEALD No.74 - deep hole grinding machine

  • Max grinding length 1200mm
  • Max internal grinding diameter fi400 mm

Blohm Planomat 408 flatness grinder for pcs. up to: 700 x 400 mm

slidereg

Conventional grinding macinery:

Microstatic Dormac flatness grinder for pcs. up to: 800 x 400 mm

Schneider JODHZ3 flatness gantry grinder                                                               for pcs. up to: 1200 x 2000 x 800 mm

Internal and External rotary grinding machine Novomatic 100/600 ME          for pcs. up to.: fi 1000 x 600

Jotes SPC20 flatness grinder for pcs. up to: 600 x 200 mm

TOS BHU 50A Internal and External rotary grinding machine for pcs. up         to the diameter of 500 x 1000 mm

Jotes SWA 10A Internal and External rotary grinding machine for pcs.            up to the diameter of 120 x 500 mm

Small component grinder which utilises ultra – high magnification for            precision grinding to a very high level

Die splitter

For the proving of all types of die cutters. This has a working capability of up to 2500 x 1400 mm and a pressing force of up to 800 kN

Welding machinery:

MIG/MAG + MMA OERLIKON CITOPULS II 420

TIG ESAB Caddy 220IW AC/DC Ta34 220A

Injection Moulding Machinery:

 Engel machine with a clamping force of 600 to 1200 kN with Piovan equipment

csm_victory160_a4_00001_web_da172858c2

Also contained in our equipment portfolio are the following:

Hydraulic and Mechanical Presses:

HYLATECHNIK hydraulic press with a clamping force of up to 2500 kN

Cottelli mechanical press with a clamping force of up to 2000 kN

PHM hydraulic press with a clamping force of up to 1600 kN

Mechanical presses with a clamping force of up to 160 kN

Sundry equipment includes:

Sheet rolling machine

Sheet bending machine

Heat treatment equipment and associated Thermal Processing Machinery
